SYSTEM KESS WINDOW CORNERS
Harmonious in every detail
System kess window corner elements are available in different reveal depths. The depth of the window elements (reveal) depends on the thickness of the insulation and the position of the window.
The window corners have an open interlock towards the façade's flat surface so that they can be easily connected to the other panels - the ideal solution for quick and easy installation.
The side open to the flat surface of the façade is always one-and-a-half bricks wide. Special lengths are produced on request.
Special solutions are produced on request.
35 mm
(thickness of the insulation)

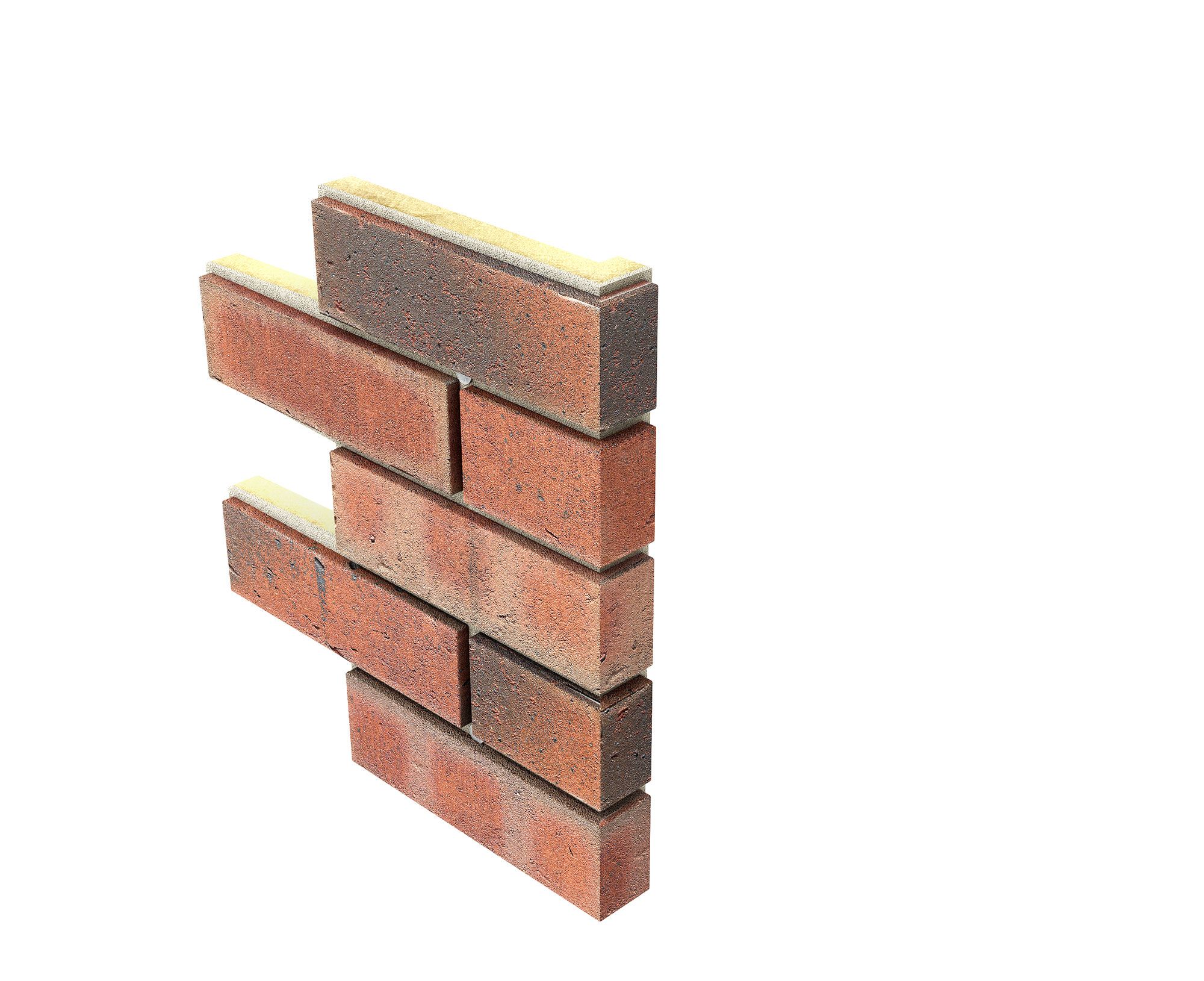

ETICS WDVS System kess 370x49 mm FE-1 2T
35 mm
(thickness of the insulation)

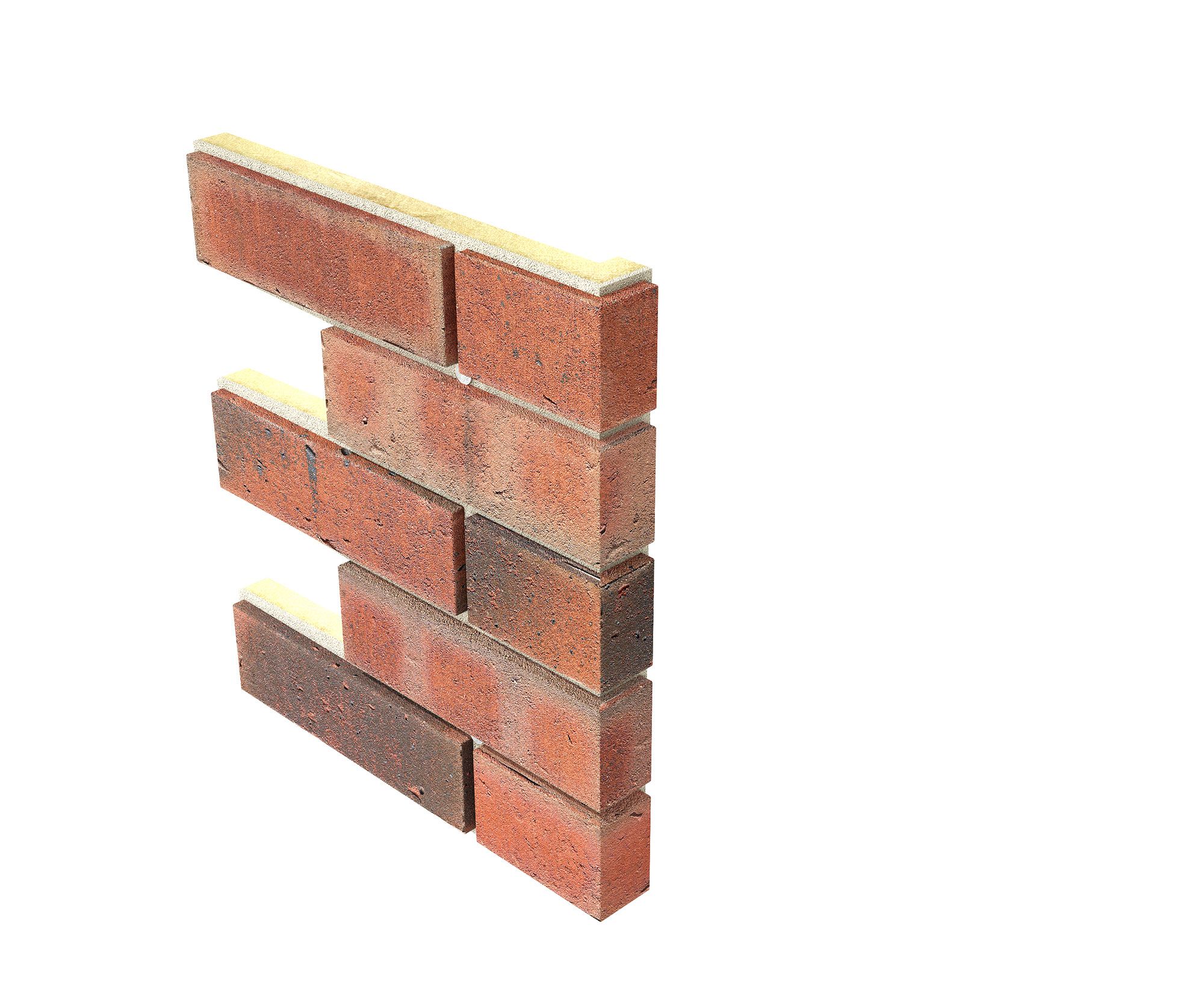

ETICS WDVS System kess 370x49 mm FE-1 3T
1/2 stone deep*

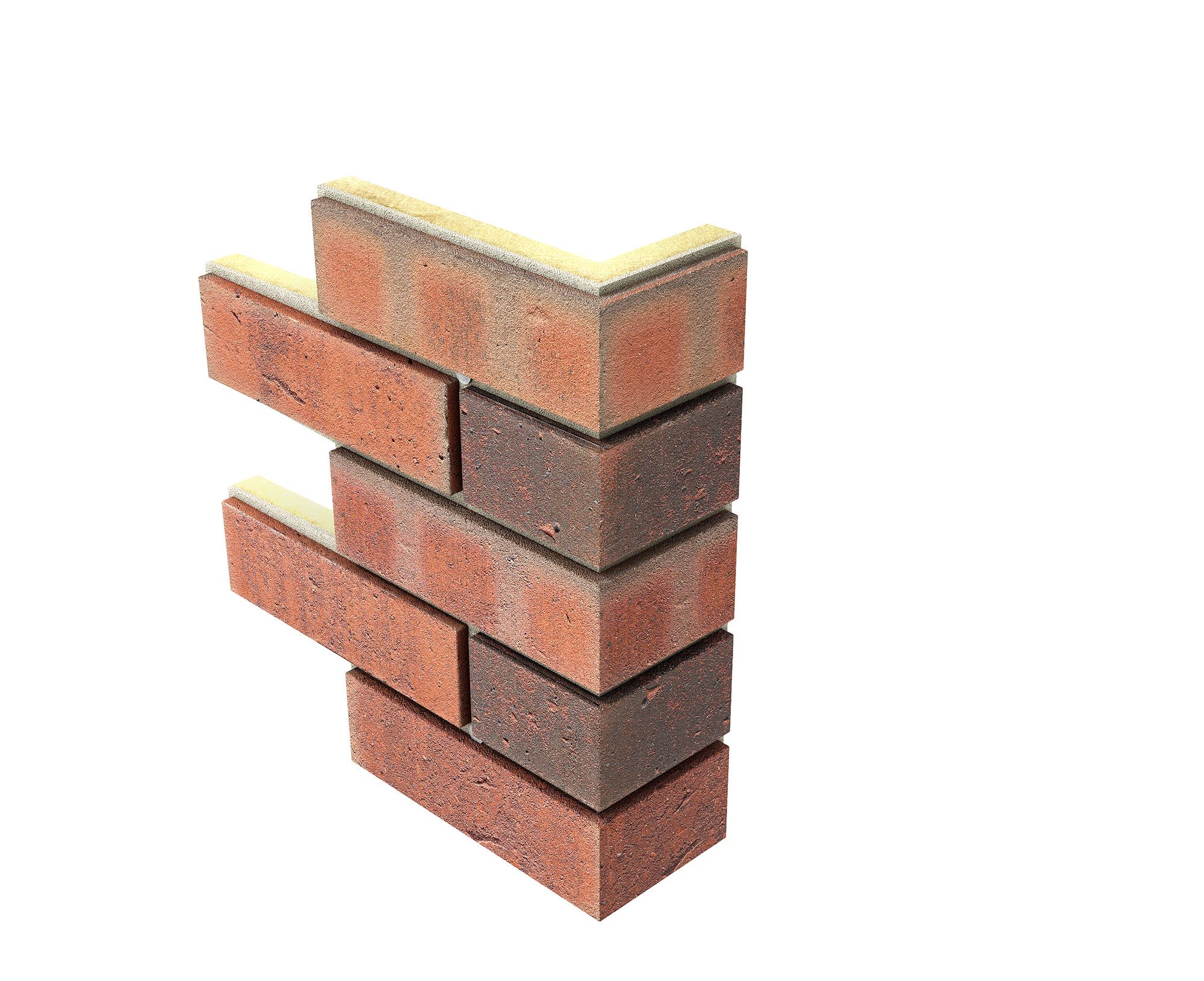

ETICS WDVS System kess 370x120 mm FE-2 2T
1/2 stone deep*

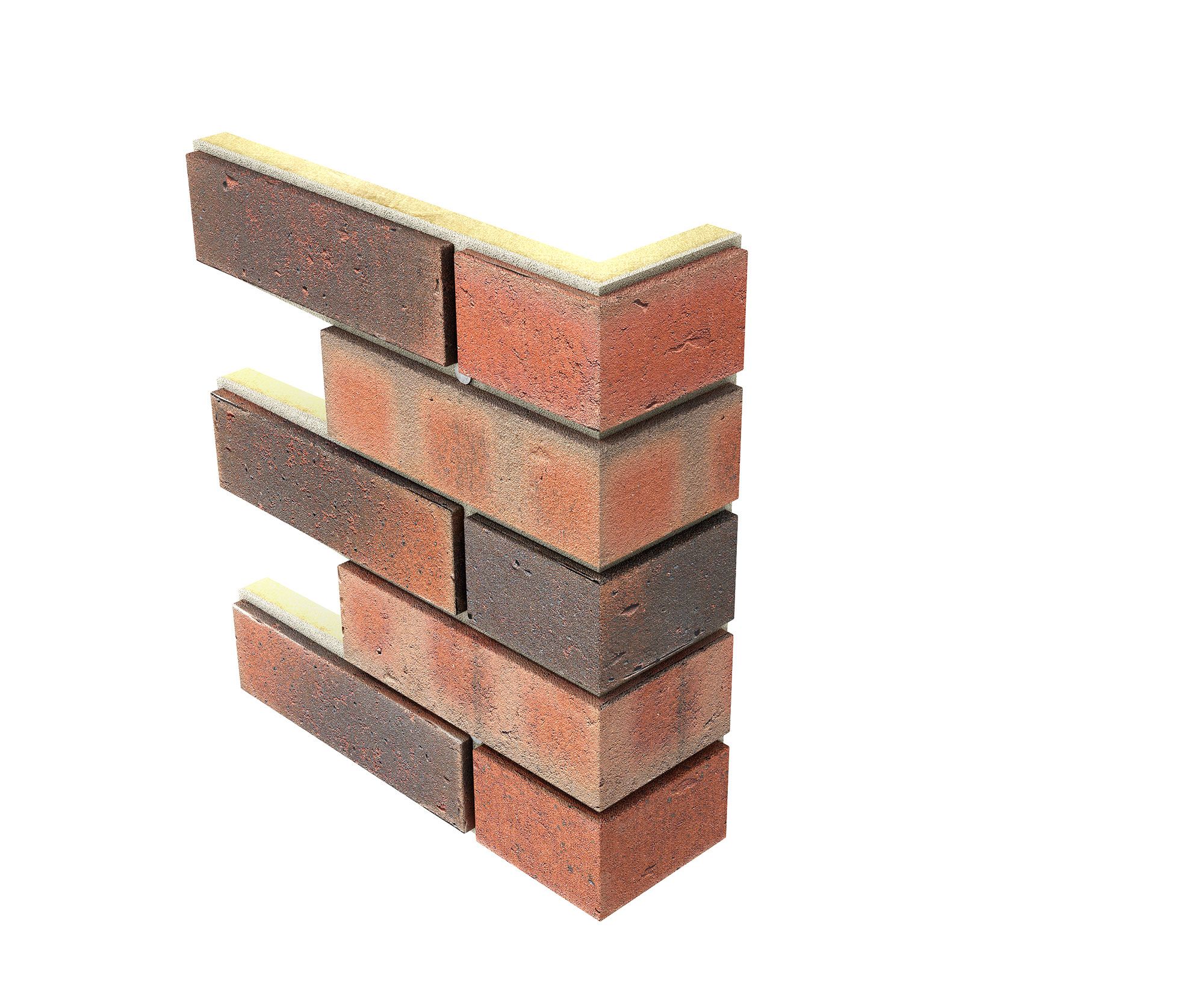

ETICS WDVS System kess 370x120 mm FE-2 3T
1 ganzer Stein tief*
ETICS WDVS System kess 370x240 mm FE-3 2T
1 whole stone deep*

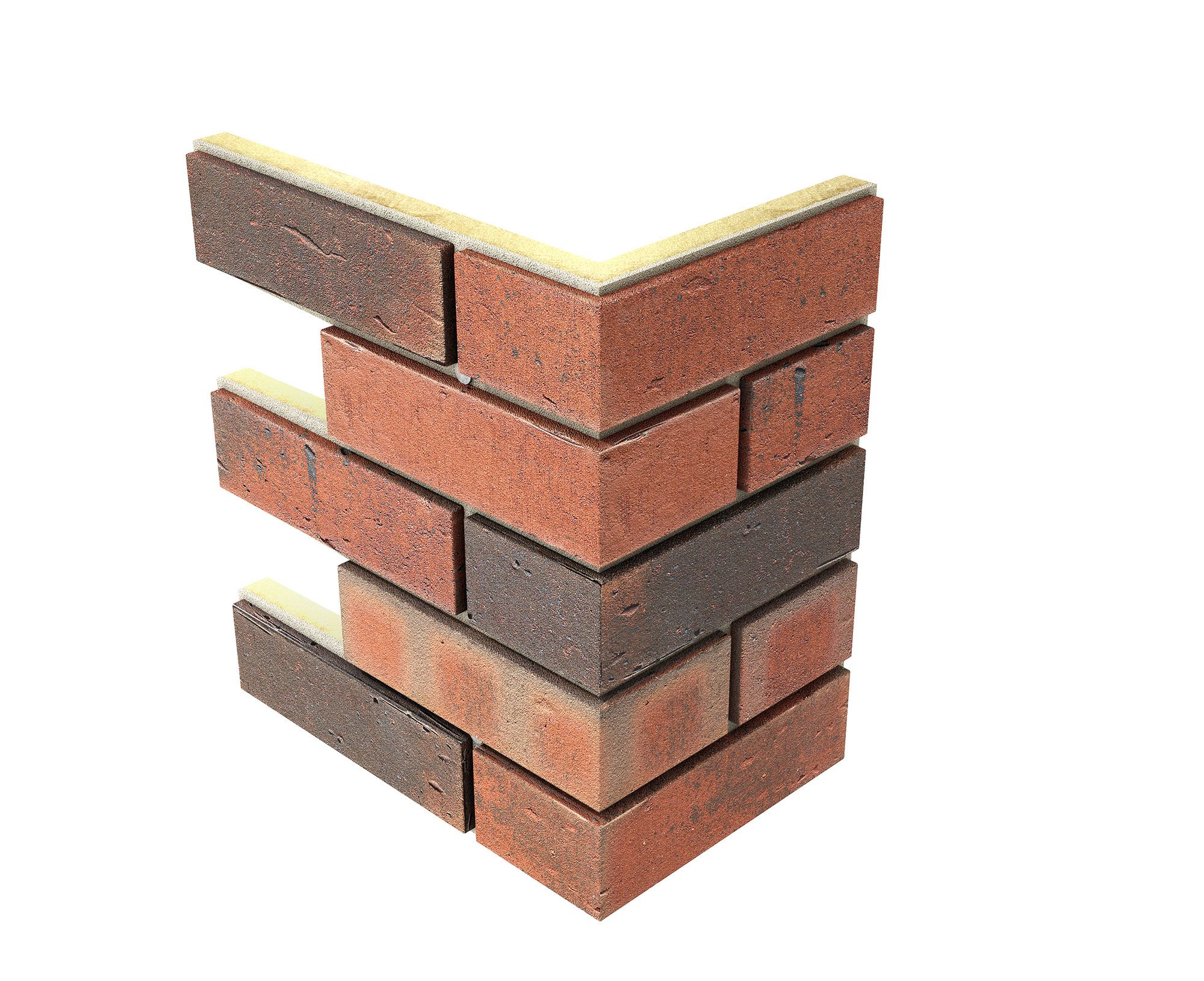

ETICS WDVS System kess 370x240 mm FE-3 3T
one and 1/2 stone deep*
ETICS WDVS System kess 370x370 mm FE-4 2T
one and 1/2 stone deep*

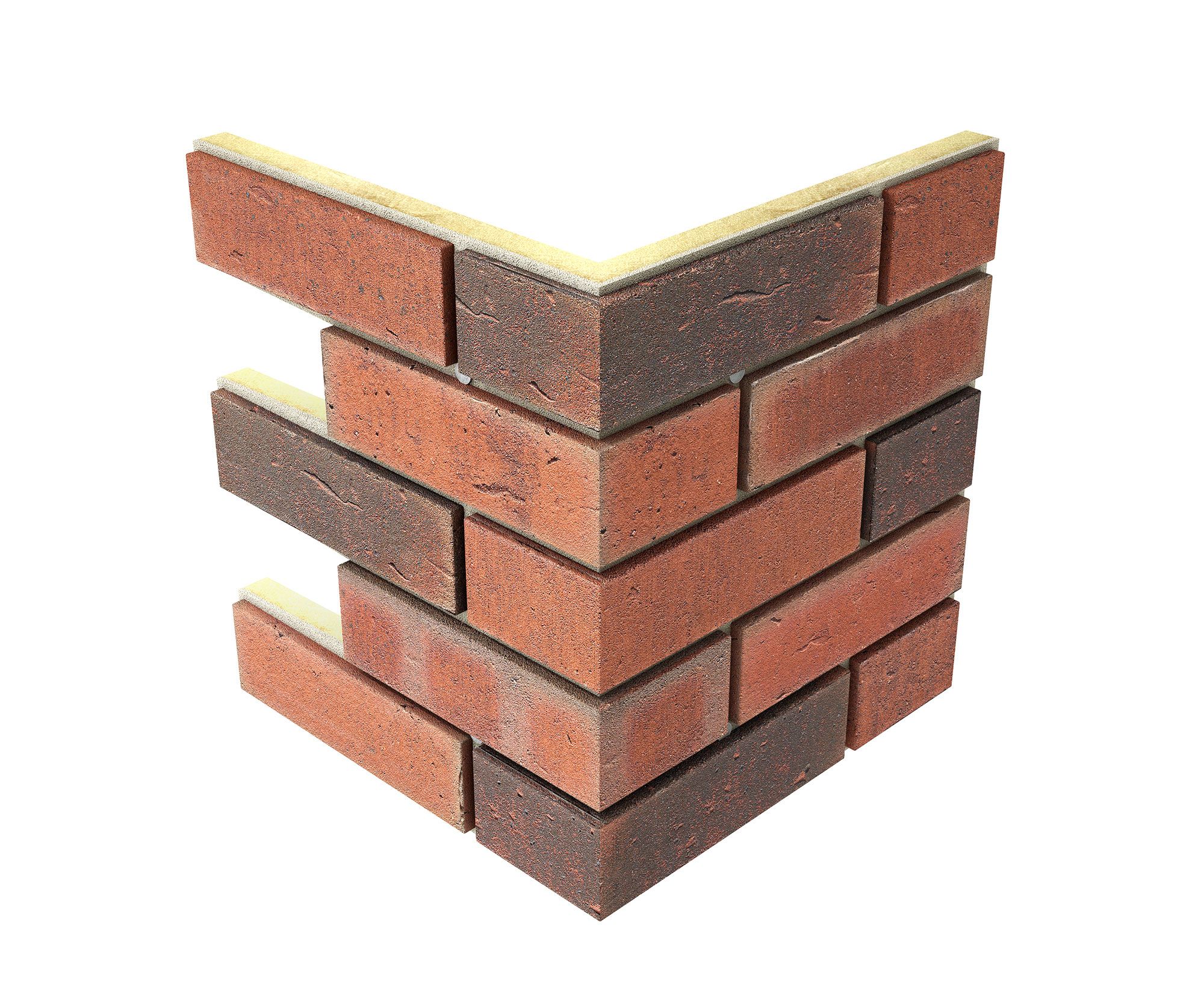

ETICS WDVS System kess 370x370 mm FE-4 3T
2 stones deep*

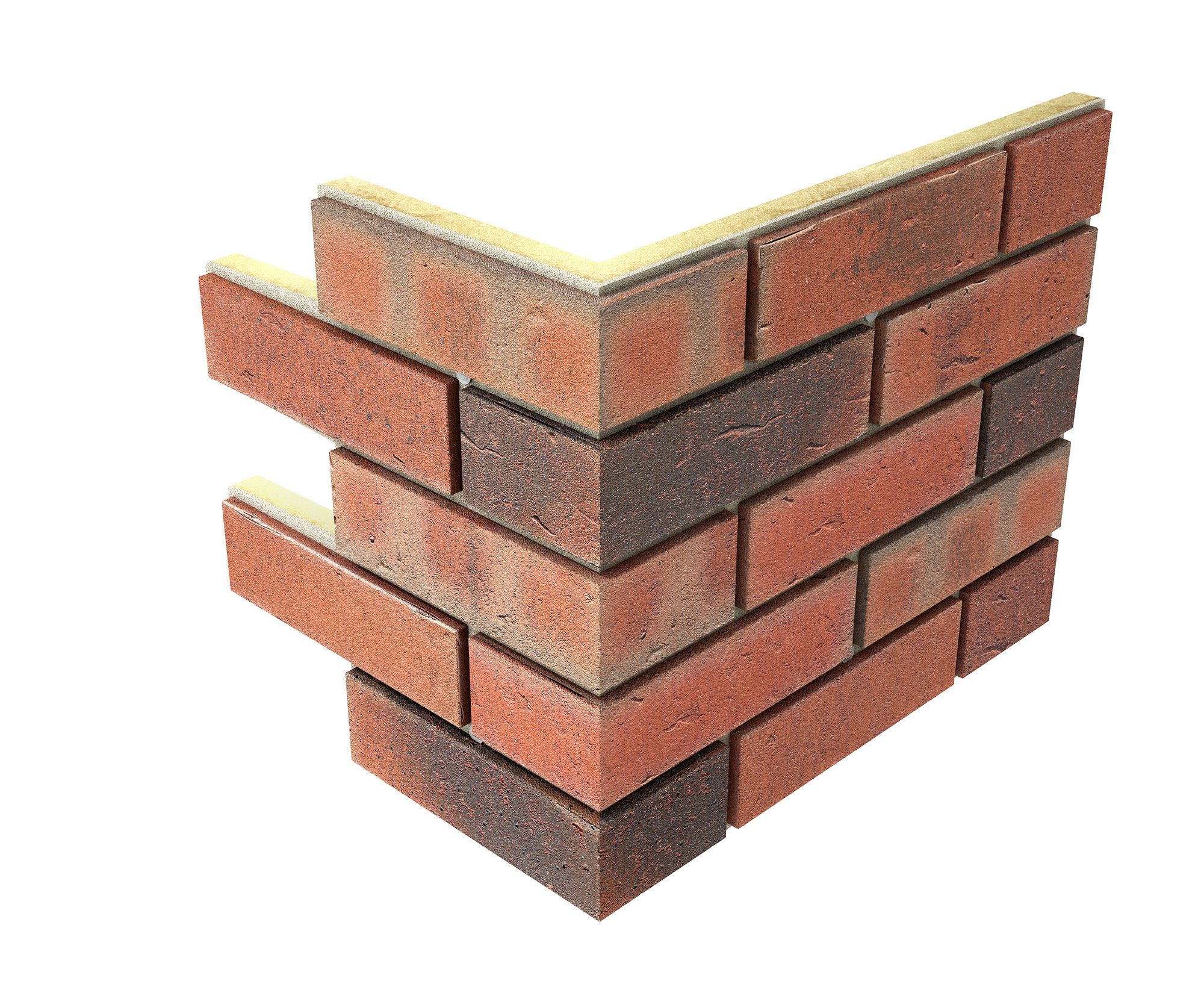

ETICS WDVS System kess 370x490 mm FE-5 2T
2 stones deep*

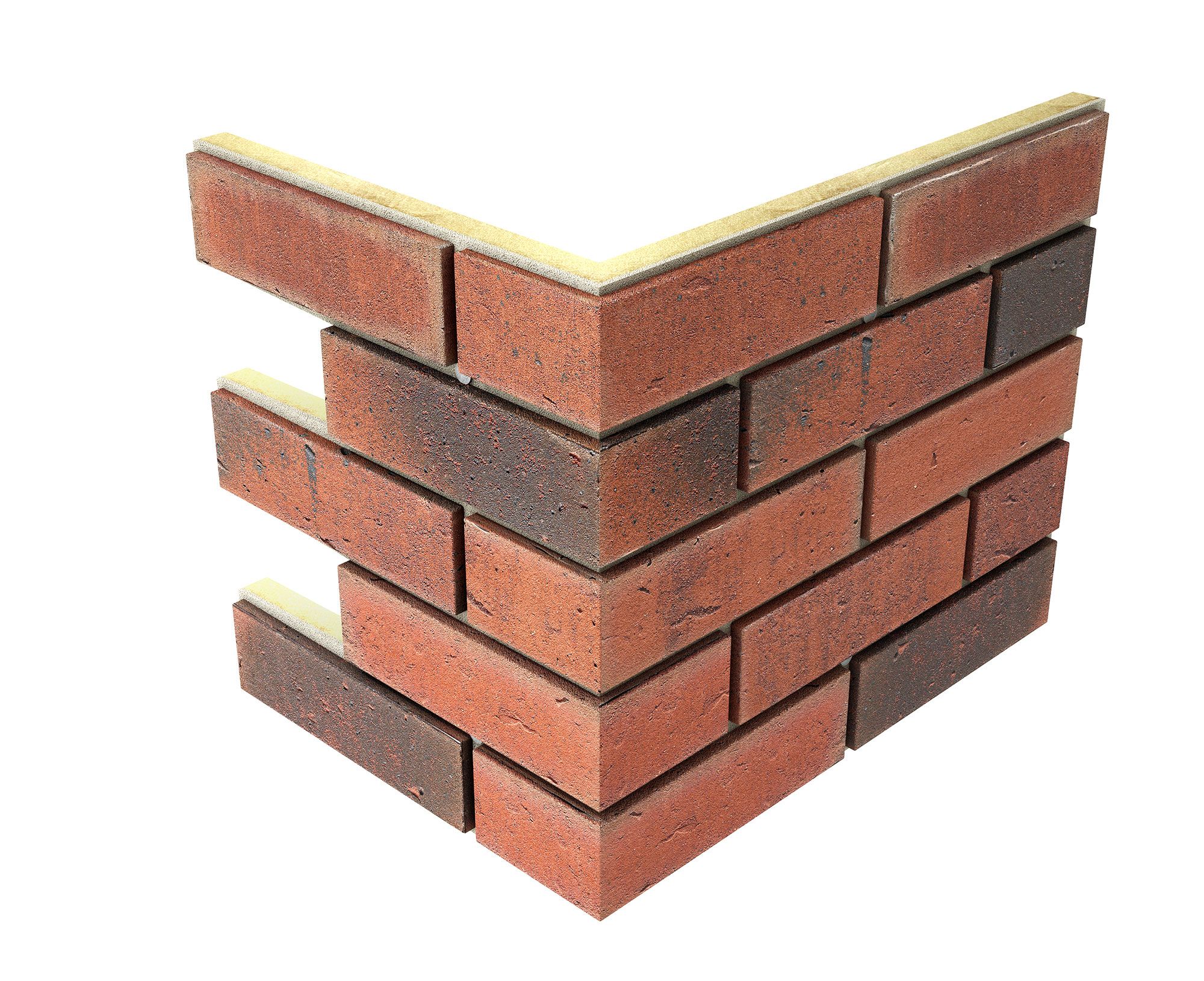

ETICS WDVS System kess 370x490 mm FE-5 3T
* The dimensions of the elements depend on the dimensions of the brick formats used.
